Hydroponic System 860W CMH Electronic Ballast / CMH Ballast / HPS MH Ballast 1000W 600W for Grow Lights
Quick Detail:
Name | CMH Ballast | Brand Name | OEM offered |
Power | 860W | Frequency | 50-60HZ |
Voltage | 100-268VAC | Power factor | >0.99 |
Color | Blue, Red, black and other | Certificate | UL, CE, FC, RoHS |
Product presentation:
Next-generation, unique patent, smart digital control light source auto-adapt light decay technology, high reliability electronic ballast. Smart digital control the light source ignition technology, the ignition distance up to 20meters. Adopt " smart digital light source auto-adapt light attenuation control" technical patent, next-generation electronic ballast. Working light source: Ceramic Metal Halide (CMH), High Pressure Sodium (HPS), Quartz Metal Halide (QMH). Ultra-strong light source parameter identification function, it can cope with poor working environment. Energy saving more than 25%, it is the embodiment of the achievements of technology innovation. Waterproof rate IP64, suitable for plant grows lighting and outdoor lighting.
Product Features:
● Next-generation smart digital control the light source ignition technology, the ignition distance up to 20 meters.
● Using high-performance special lighting CPU control technology, Intelligent detection light source working condition, adjust the best luminous flux and electricity consumption in real time.
● Next-generation smart digital ignition energy control technology, it can prevent the damage of the light source and filament became black furthest, and extended the lamp working life.
● Next-generation smart digital lamp startup control technology, high-precision digital control lamp startup current, it can control the light attenuation and working life of the lamp furthest.
● Smart digital lamp protection technology, high stability of lamp current control, Dynamic lamp power control, Smart lamp auto-adapt light attenuation control, the lamp working life up to 5 years.
● High reliability digital driver circuit. Smart, high sensitivity anti-thunder, open circuit, short circuit, over-current, over-voltage, over-temperature protection technology, the ballast working life up to 5 years.
● Efficiency: > 92% , High performance APFC circuit, Power factor up to 0.99, THD<6%, Efficient green energy conservation and environmental protection.
● Using the most sophisticated R&D and production process, with high outdoor quality standards.
● Working light source: Ceramic Metal Halide (CMH), High Pressure Sodium (HPS), and Quartz Metal Halide (QMH).
● Multi-voltage input (120V / 208V / 240V).
● Smart infrared remote control dimmer, can memory when power off, can control the output power: 1000W, 860W, 630W, 530W, 0W (power off).
● With 0-10V standard interface input, convenient access control systems to control, adjustable power range: 530W-1000W (When 1000W On).
Product Specifications
Product Type | CMH-860D |
AC input voltage | 120VAC/208VAC/240VAC,50/60HZ |
AC inrush current(Max) | Cold start,80A/230VAC |
Rated Power | 924W |
Line Current | 7.71A@120VAC, 4.45A@208VAC, 3.85A@240VAC |
Light Decay Control attenuation | <5%/20000h |
PF | >0.99 |
Operating Frequency | 140~160HZ |
Trigger voltage | 6KV(MAX) |
THD | <6% |
Ballast power dissipation | 65W |
Scalable communication interface | 0~10V,Infrared remote control interface |
Protection:
Open or short circuit protection | Automatic shutdown, troubleshooting on again to resume work |
Hot start protection | Three times over one minute after ignition failed three times, such as the ignition is still unsuccessful ignition 3 times for another five minutes, if still unsuccessful automatic shutdown |
Over-temperature protection | Set limit temperature, lower power protection |
Lightning Protection | L-N:5KV; L-PE:5KV; N-PE:5KV |
Products comply with CE / CCC / UL standards:
Certification Category | Country | Note |
CE | Europe | EEN61347-1,EN61347-2-9,EN55015,EN61547,EN61000-3-2/3 |
CCC | China | GB19510.1,GB19510.13,GB17743,GB17625.1. |
UL/CUL | USA &Canada | ANSI/UL 1029-1994 |

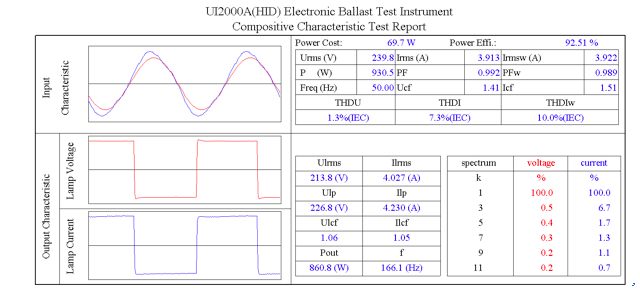

Integrated Test Parameters(Single lamp status):
Environmental noise standards:
GB/T14623: Urban regional environmental noise standards
Environmental noise standards:
Operating temperature | 30℃~+50℃ |
Operating humidity | 20~95%RH |
Storage temperature,humidity | -30℃~+70℃,10~95%RH |
Burn-in:
The power should Burn-in at least 4 hours under full load condition and ambient temperature of 40℃±5℃.
Life:
Under rated ambient temperature of 45-℃ and 220Vac input conditions, the theoretical life
expectancy is above 50,000 hours.
Waterproof:
IP64 Standard.
ROHS:
Meet ROHS Standard.

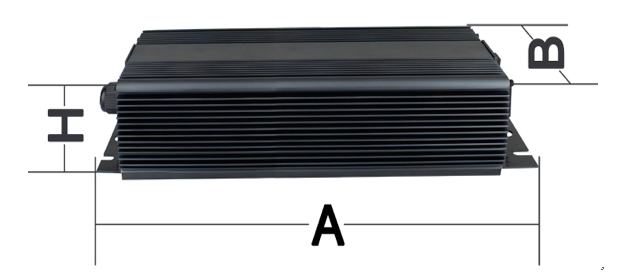

Weight,Package and Dimensions:
Items | Note |
Enclosure Material | Aluminum |
Color | Dark Grey |
Net weight | 5.2kg |
Box size(W×D×H) | 391mm x 171mm x 170mm |
Length(A) | 361mm |
Width(B) | 125mm |
Height(H) | 92mm |
Install slot width | 12mm |

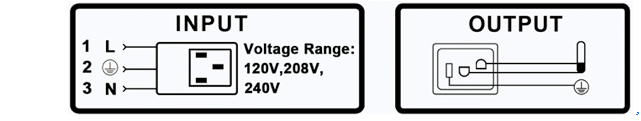

Wiring Diagram:
