Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse

Certifications
Good quality Digital Ballast for sales
Good quality Digital Ballast for sales
I'm Online Chat Now

Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse

China Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse supplier
Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse supplier Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse supplier Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse supplier

Large Image :  Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse

Product Details:

Place of Origin: China
Brand Name: CMH Ballast
Certification: CE&UL
Model Number: CMH630W

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20000PCS/month
Contact Now
Detailed Product Description
Power: 630W Lamp: HPS/MH
Power Factor: >0.99 Color: Black, Red, Blue Other

Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse

Quick Detail:


NameLow Frequency Digital BallastBrand NameOEM offered
Power630WFrequency50-60HZ
Voltage100-268VACPower factor>0.99
ColorBlue, silver, black and otherCertificateUL, CE, FC, RoHS


Product presentation:

EBM next-generation, unique patent, smart digital control light source auto-adapt light decay technology, high reliability electronic ballast. Smart digital control the light source ignition technology, the ignition distance up to 20meters. Adopt " smart digital light source auto-adapt light attenuation control" technical patent, next-generation electronic ballast. Working light source: Ceramic Metal Halide(CMH), High Pressure Sodium (HPS), Quartz Metal Halide (QMH). Ultra-strong light source parameter identification function, it can cope with poor working environment. Energy saving more than 25%, it is the embodiment of the achievements of technology innovation. Waterproof rate IP64, suitable for plant grow lighting and outdoor lighting.

Product Features:

● Next-generation smart digital control the light source ignition technology, the ignition distance up to 20 meters.
● Using high-performance special lighting CPU control technology, Intelligent detection light source working condition, adjust the best luminous flux and electricity consumption in real time.
● Next-generation smart digital ignition energy control technology, it can prevent the damage of the light source and filament became black furthest, and extended the lamp working life.
● Next-generation smart digital lamp startup control technology, high-precision digital control lamp startup current, it can control the light attenuation and working life of the lamp furthest.
● Smart digital lamp protection technology, High stability of lamp current control, Dynamic lamp power control, Smart lamp auto-adapt light attenuation control, the lamp working life up to 5 years.
● High reliability digital driver circuit. Smart, high sensitivity anti-thunder, open circuit, short circuit, over-current, over-voltage, over-temperature protection technology, the ballast working life up to 5 years.
● Efficiency: > 91% , High performance APFC circuit, Power factor up to 0.99, THD<6%, Efficient green energy conservation and environmental protection.
● Using the most sophisticated R&D and production process, with high outdoor quality standards.
● Working light source: Ceramic Metal Halide (CMH), High Pressure Sodium (HPS), and Quartz Metal Halide (QMH).
● Multi-voltage input (120V / 208V / 240V).
● Smart infrared remote control dimmer, can memory when power off, can control the output power: 700W, 630W, 420W, 280W, 0W (power off).
● with 0-10V standard interface input, convenient access control systems to control, adjustable power ranges: 280W-700W (When 700W On).

Product Specifications


Product TypeCMH-630D
AC input voltage120V / 208V / 240V, 50/60HZ
AC inrush current(Max)Cold start,70A/230V AC
Rated Power680W
Line Current5.98A@120V AC, 3.44A@208V AC,2.98A@240V AC
Light Decay Control attenuation<5%/20000h
PF>0.99
Operating Frequency140~160HZ
Trigger voltage6KV(MAX)
THD<6%
Ballast power dissipation50W
Scalable communication interface0~10V,Infrared remote control interface


Protection:


Open or short circuit protectionAutomatic shutdown, troubleshooting on again to resume work
Hot start protectionThree times over one minute after ignition failed three times, such as the ignition is still unsuccessful ignition 3 times for another five minutes, if still unsuccessful automatic shutdown
Over-temperature protectionSet limit temperature, lower power protection
Lightning ProtectionL-N: 5KV; L-PE: 5KV; N-PE: 5KV


Products comply with CE / CCC / UL standards:


Certification CategoryCountryNote
CEEuropeEEN61347-1,EN61347-2-9,EN55015,EN61547,EN61000-3-2/3
CCCChinaGB19510.1,GB19510.13,GB17743,GB17625.1.
UL/CULUSA &CanadaANSI/UL 1029-1994

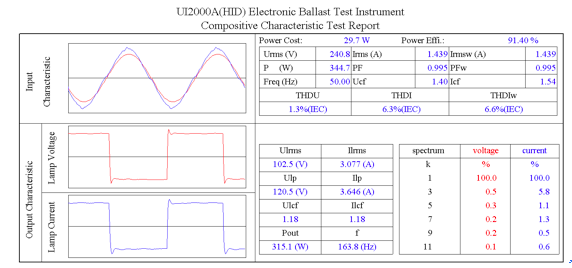

Integrated Test Parameters(Single lamp status):

Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse

Environmental noise standards:

GB/T14623: Urban regional environmental noise standards

Environmental noise standards:


Operating temperature30℃~+50℃
Operating humidity20~95%RH
Storage temperature, humidity-30℃~+70℃,10~95%RH


Burn-in:

The power should Burn-in at least 4 hours under full load condition and ambient temperature of 40℃±5℃.

Life:

Under rated ambient temperature of 45 ℃ and 220Vac input conditions, the theoretical life
expectancy is above 50,000 hours.

Waterproof:

IP64 Standard.

ROHS:

Meet ROHS Standard.

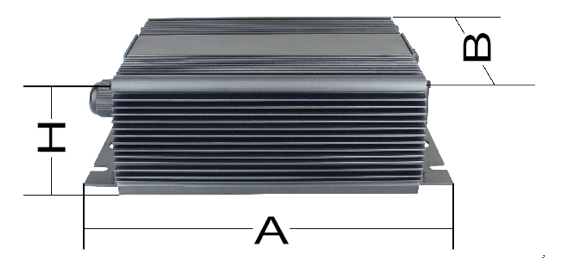

Weight,Package and Dimensions:


ItemsNote
Enclosure MaterialAluminum
ColorDark Grey
Net weight6.2kg
Box size(W×D×H)505mm x 171mm x 170mm
Length(A)457mm
Width (B)125mm
Height (H)92mm
Install slot width12mm


Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse

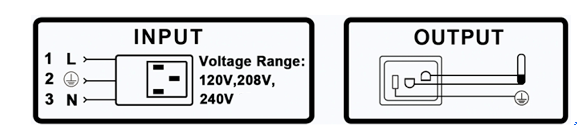

Wiring Diagram:

Hydropinic 630W Twin Output 315X2 Dual Dimmable CMH Digital Electronic Ballast for Garden and Greenhouse
